CATS™ I

The only validated reference tool for wireless charging of low-power products (BPP)

Accepted by the WPC as the reference test tool for wireless charging

___________

Designed and engineered by creators of the Qi standard

___________

Each coil assembly individually tuned to fulfill Qi specifications and maximize measurement accuracy

___________

Optional upgrade to support Foreign Object Detection (FOD)

___________

System suitable for development purposes, pre-certification and quality control

A POWERFUL, FLEXIBLE TEST TOOL FOR THOROUGH, ACCURATE TESTING

As the only test tools validated and certified by the WPC, CATS I and CATS II offer the very best technology in wireless charging test systems and set the standard for the industry.

CATS I testers are perfect to test for certification of Qi low-power products, up to 5 W, and under Power Class 0 this low-power classification is now called the Baseline Power Profile.

Each CATS I unit includes a built-in computer, delivered with keyboard, mouse and monitor – ready to tailor to your testing needs.

CATS I MDT & CATS I BST

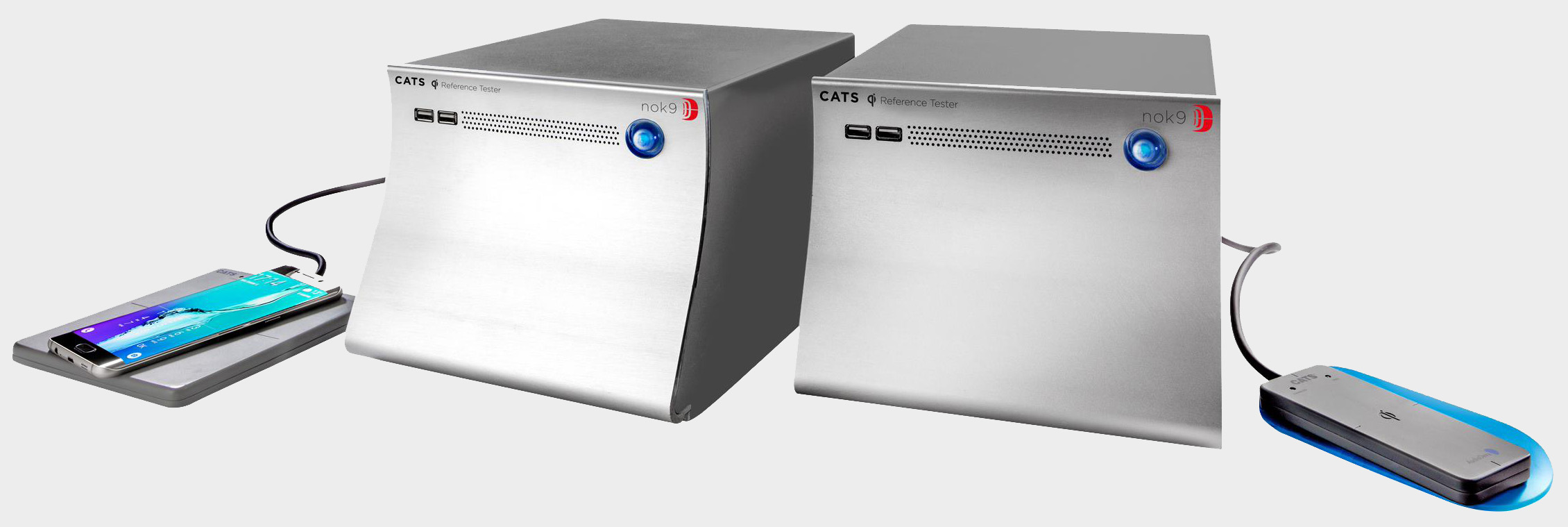

CATS I MDT with receiver under test & CATS I BST with transmitter under test

SYSTEM OVERVIEWS

CATS I BST

Base Station Tester

______________________________________________________________________________________

CATS I MDT

Mobile Device Tester

TECHNICAL SPECIFICATIONS

_______________________

CATS I MDT

Electrical characteristics:

  • 100-240 V AC / 50/60 Hz
  • 4 A max (100 V AC)
  • 2 A max (240 V AC)

Physical characteristics:

  • Width 222 mm
  • Height 176 mm
  • Length 280 mm
  • Weight 6.3 kg

Computer I/O

  • Keyboard/mouse/monitor/USB/Ethernet

CATS I TPT

Physical characteristics:

  • Width 150 mm
  • Length 150 mm
  • Thickness 12.5 mm
  • Cable length 600 mm

Measurement I/O

  • RX coil (XLR male)
  • Test Point 1 Input Voltage
  • Test Point 2 Input Current
  • Test Point 3 Coil Voltage
  • Test Point 4 Voltage Amplitude Demodulated
  • Test Point 5 Coil Current
  • Test Point 6 Phase Demodulated
  • Test Point 7 Current Amplitude Demodulated
  • Test Point 8 Switch/Half-bridge Inverter
  • Trigg Trigger Out (BNC)

CATS I BST

Electrical characteristics:

  • 100-240 V AC / 50/60 Hz
  • 4 A max (100 V AC)
  • 2 A max (240 V AC)

Physical characteristics:

  • Width 222 mm
  • Height 176 mm
  • Length 280 mm
  • Weight 6.3 kg

Computer I/O

  • Keyboard/mouse/monitor/USB/Ethernet

CATS I TPR

Physical characteristics:

  • Width 55 mm
  • Length 115 mm
  • Thickness 12 mm
  • Cable length 600 mm

Measurement I/O

  • RX coil (XLR male)
  • Temperature input (Thermocouple K type)
  • Test Point 1 Coil AC-voltage +
  • Test Point 2 Coil AC-voltage –
  • Test Point 3 Rectifier voltage
  • Test Point 4 Load Current
  • TRIGG Trigger Out
  • LOAD External Load
