Wireless power evaluation tools for the kitchen

Developed by nok9, sole provider of compliance and reference tools for QI (BPP & EPP)

___________

Focused on performance testing of wireless power designs for kitchen appliances

___________

Easy to use, with two separate modules for transmitter and receiver emulation

___________

Designed to test the full specification of the Cordless Kitchen developed by the WPC

___________

Cost-effective system for wireless power product design and interoperability testing

Meet CATS Ki

CATS Ki is the first comprehensive set of evaluation and compliance tools designed for performance testing and evaluation of wireless power devices within the emerging Cordless Kitchen specification from the Wireless Power Consortium (WPC).

The CATS Ki system includes two primary units: the Test Power Receiver (TPR), with separate load boxes to test a transmitter, and the Test Power Transmitter (TPT) to test a receiver. In addition to this core configuration, the system connects to a host computer via a USB connection, and it features a dynamic user interface that provides adjustable settings and parameters to fit individual product development and evaluation needs.

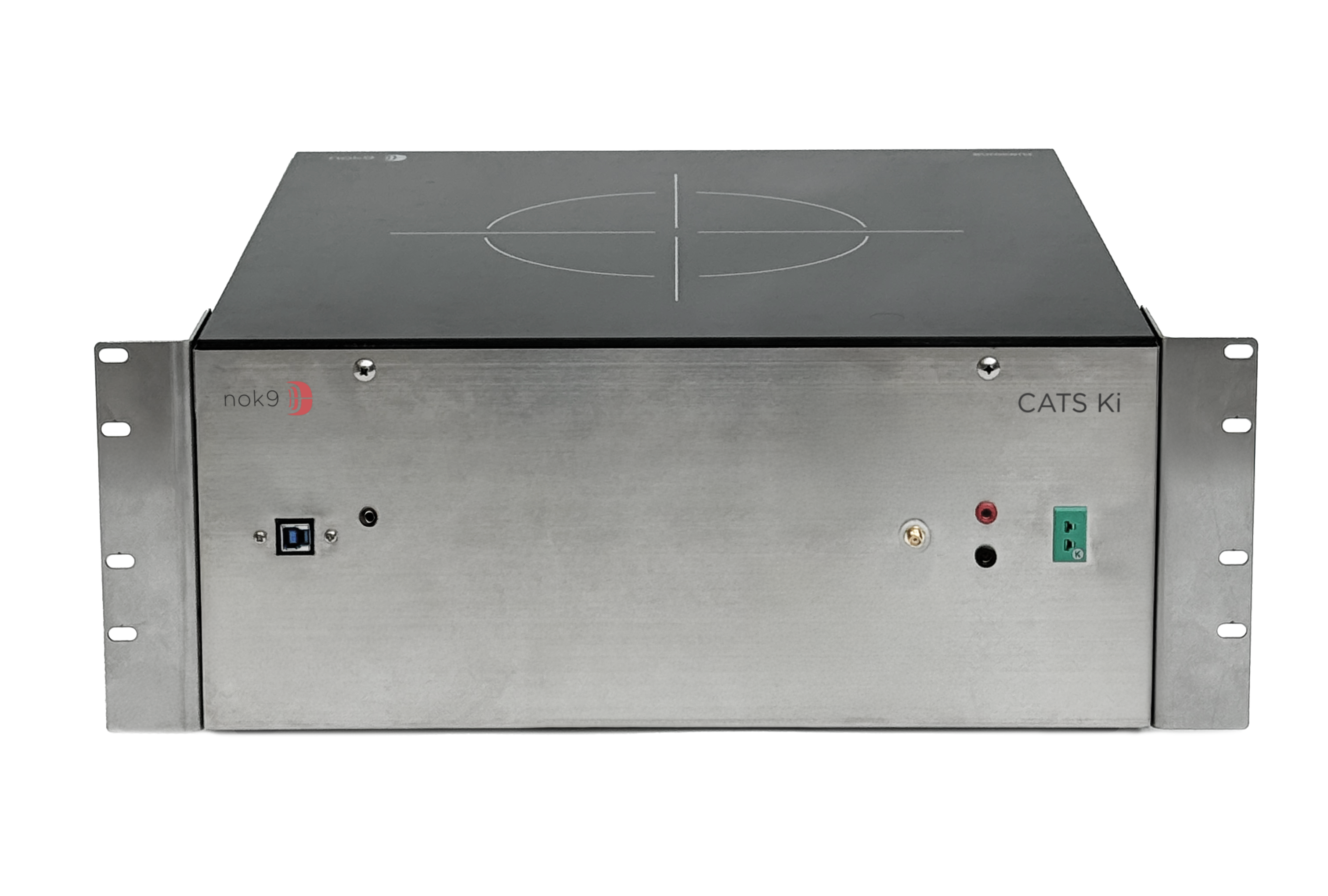

EVA III MDT — CATS Ki - Test Power Transmitter

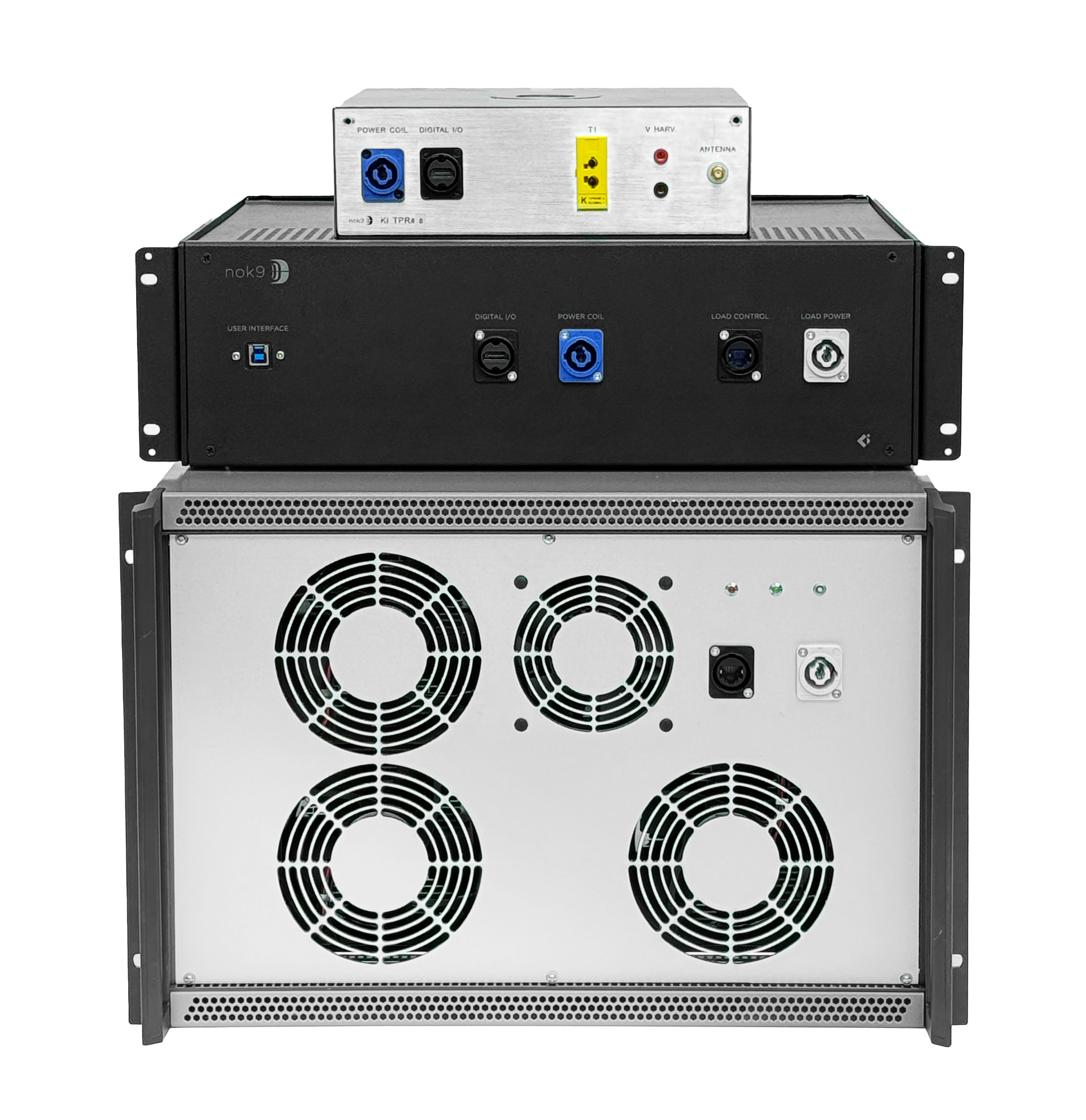

EVA III BST — CATS Ki - Test Power Receiver

CATS Ki TPR

_______________________

Used to emulate an appliance designed for Cordless Kitchen specification created and managed by the WPC
Targeted at manufacturers of kitchen countertops, stoves, the device that generates the electromagnetic field

CATS Ki TPT

_______________________

Used to emulate a kitchen countertop designed for the Cordless Kitchen specification created and managed by the WPC
Targeted at manufacturers of kitchen tools such as blenders, coffee makers and similar appliances - the devices that harvests the electromagnetic field

SYSTEM OVERVIEWS

CATS Ki TPR

Test Power Receiver

______________________________________________________________________________________

CATS Ki TPT

Test Power Transmitter

TECHNICAL SPECIFICATIONS

_______________________

CATS Ki TPT

For countertop manufacturers

Supports all three power classes and sizes

Compatibility with universal mains (90-260VAC, 50-60Hz)

State of the art measurement of:

Voltage
Power
Temperature
Efficiency
Current
Phase

Provides analysis of the load dumps/steps

Fully customizable PID-based regulation method (frequency and/or phase)

Communication

Fully equipped out of band communication link
Fully customizable packet content/sequence/baud rate
According to the WPC Cordless Kitchen spec
13.56MHz out of band communication channel
NFC compatibility

User Interface

Adjustable settings and parameters to fit individual product development and evaluation needs

Safe Measurement tool for mains operated equipment

Internal Scope (Internal measurement circuits that isolate high voltage signals from the operator)
Over voltage/over current protector
Emergency Stop

Lightweight portable system

Frequency ranges

Series Resonance at 33KHz (Tuneable through GUI)

Foreign object detection (FOD)

Provides common failure scenarios for RX to handle gracefully
