EVA I

Evaluation tool for development of WPT transmitter designs up to 15 W

Developed by nok9, sole provider of compliance and reference tools for QI (BPP & EPP)

___________

Ideal development platform for WPT transmitters up to 15W

___________

Enables evaluation of designs and operating points in different WPT solutions

___________

Fully compliant with the WPC Power Class 0 specification

___________

Modular design for flexibility and scalability

SIMPLE AND SLEEK

EVA I is an ideal tool kit for rapid prototyping and reliable comparison of different designs and prototype solutions. Developers can utilize EVA I for the evaluation of their design, without the need to develop counterpart products themselves. A company developing receivers or transmitters for Power Class 0 applications can use the EVA I to evaluate the coupling, losses and operating points of their design. Equally important for research and development, EVA I serves as a dynamic and affordable evaluation tool for the analysis of system operations and benchmark of a receiver or transmitter module and coupling with different designs. EVA I is designed to be simple and sleek, easily connected to a computer or laptop through a USB port, thereby enabling full firsthand evaluation of different designs in a realistic use case scenario. EVA I comes in two stand-alone variants: EVA I BST (Base Station Tester) for testing transmitters and EVA I MDT (Mobile Device Tester) for testing receivers.

EVA I BST

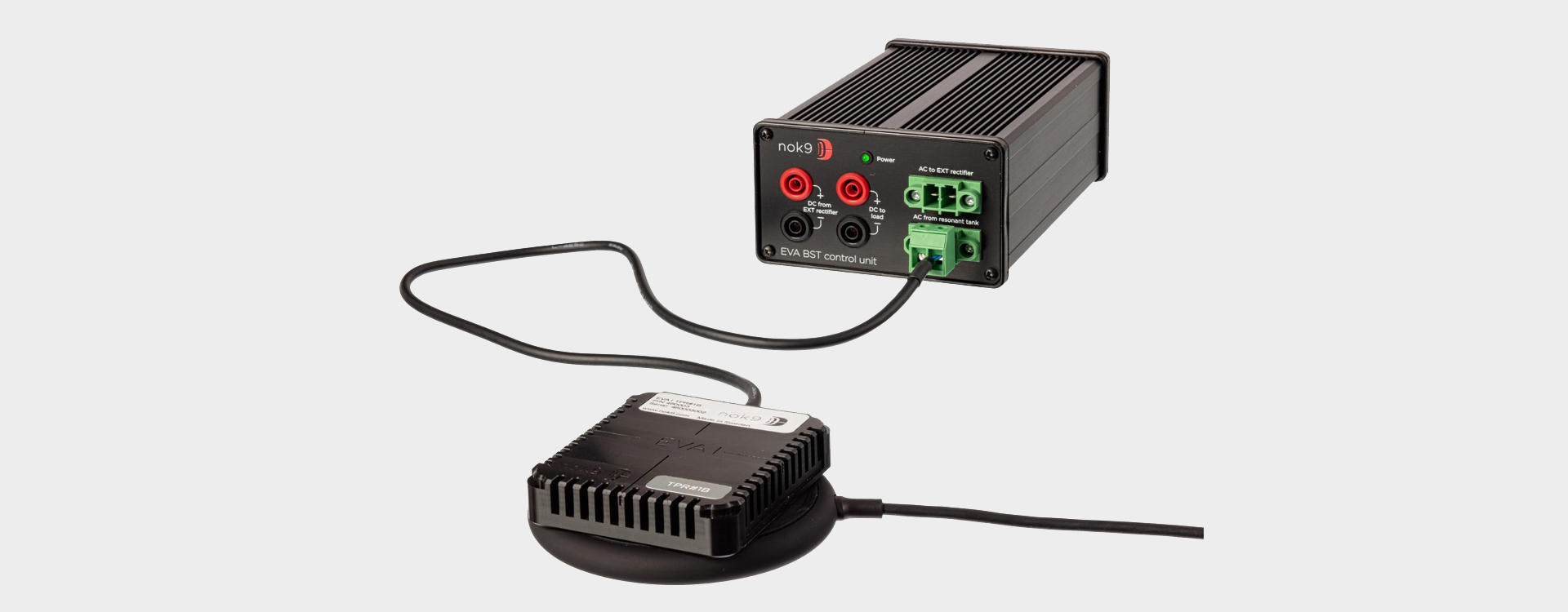

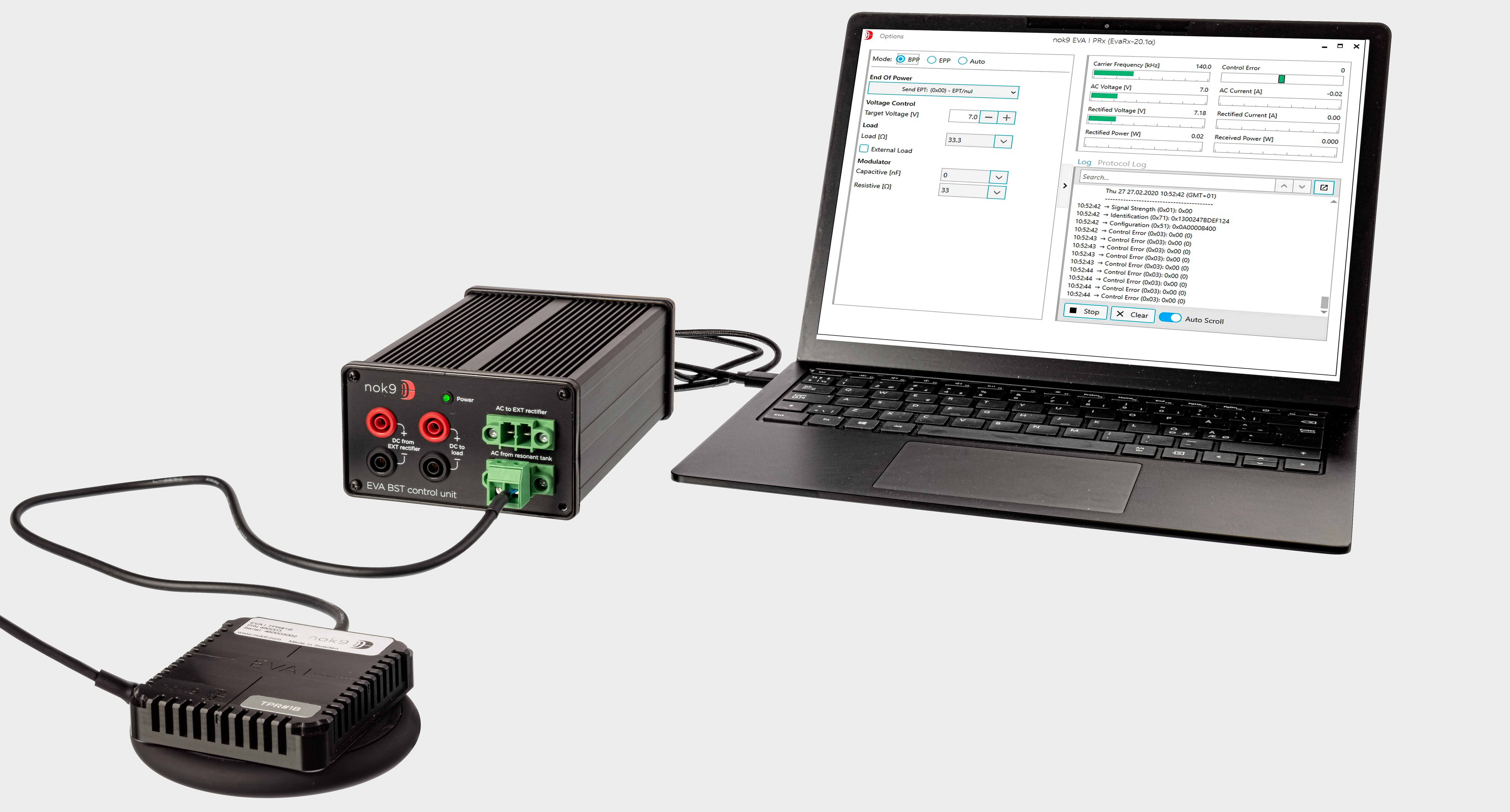

EVA I BST with transmitter under test

EVA I MDT

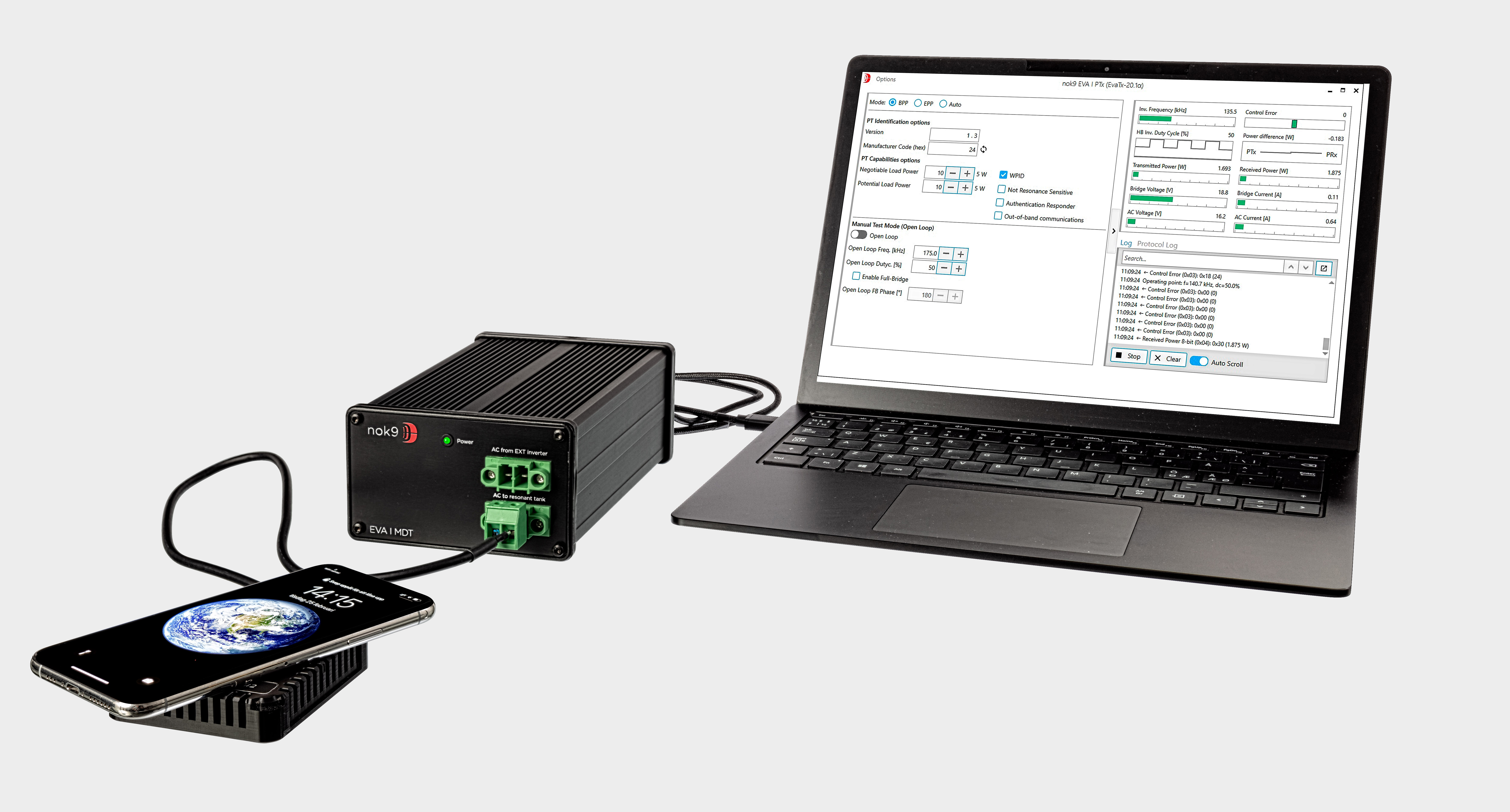

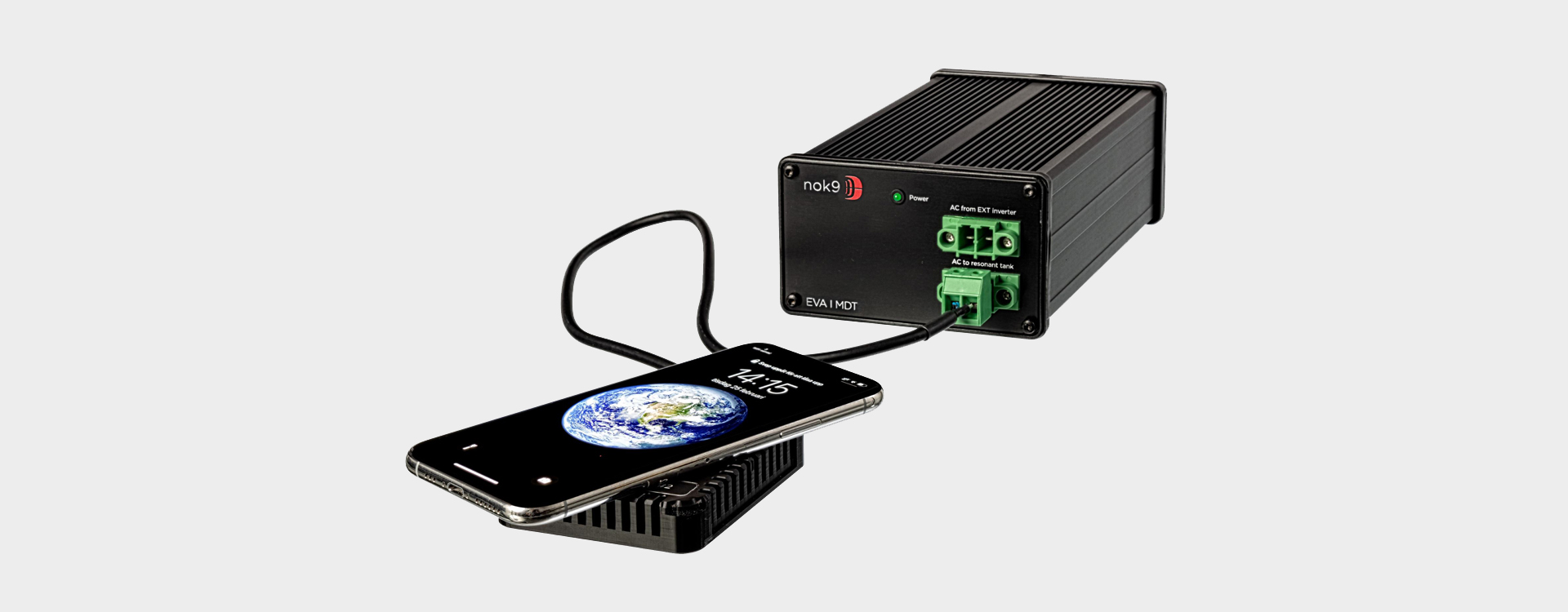

EVA I MDT with receiver under test

PROBLEM STATEMENT

Evaluation and benchmark is critical for the initial stage of product development, in order to select the best possible designs and components. However the ability to properly evaluate a product depends on access to reliable reference counter parts.

  • Commercial samples are usually accessible but often lacks the proper control and validation of measurements
  • Access to compliance test tools are costly and time critical

USER

The EVA I systems are ideal evaluation tools for developers and designers of WPT transmitters up to 15 W, during early development stages:

  • Evaluate prototypes with focus on Tx/Rx communication, (voltage, current, frequency), coupling factor and efficiency
  • Compare different WPT receiver or transmitter solutions and designs
  • Simulate different receiver or transmitter designs

SYSTEM OVERVIEWS

EVA I BST

Base Station Tester

______________________________________________________________________________________

EVA I MDT

Mobile Device Tester

READ MORE ABOUT

EVA I BST

EVA I BST (Base Station Tester) is an evaluation platform for WPT transmitters (PTx) development, designed to support the WPC Qi standard.

The EVA I BST converts the AC input from any connected receiver coil to a DC output. Values are measured and presented in the GUI, through the USB connection to any external laptop. Operating parameters set in the GUI are interpreted by the EVA I BST unit and passed on through the EVA I TPR.

_______________________
EVA I BST

HARDWARE

__________________

The EVA I BST is a portable and modular platform that can be expanded with both HW and SW upgrades, purchased separately. The Starter Kit consists of a Control Unit and one TPR (Test Power Receiver), which serve as the PRx coil and placed on top of the PTx Device Under Test (DUT). Additional upgrades of HW include FOD kit and Sniffer probe.

CONTROL UNIT

The main control and processing unit. It contains the logical elements, measurement boards and electronics. When connected to a separate host computer, such as a PC, a powerful and use- friendly GUI enables configuration settings of parameters and use cases to then provide real time data collection and processing of test results.

ADD TO CART

SELECT DATASHEET

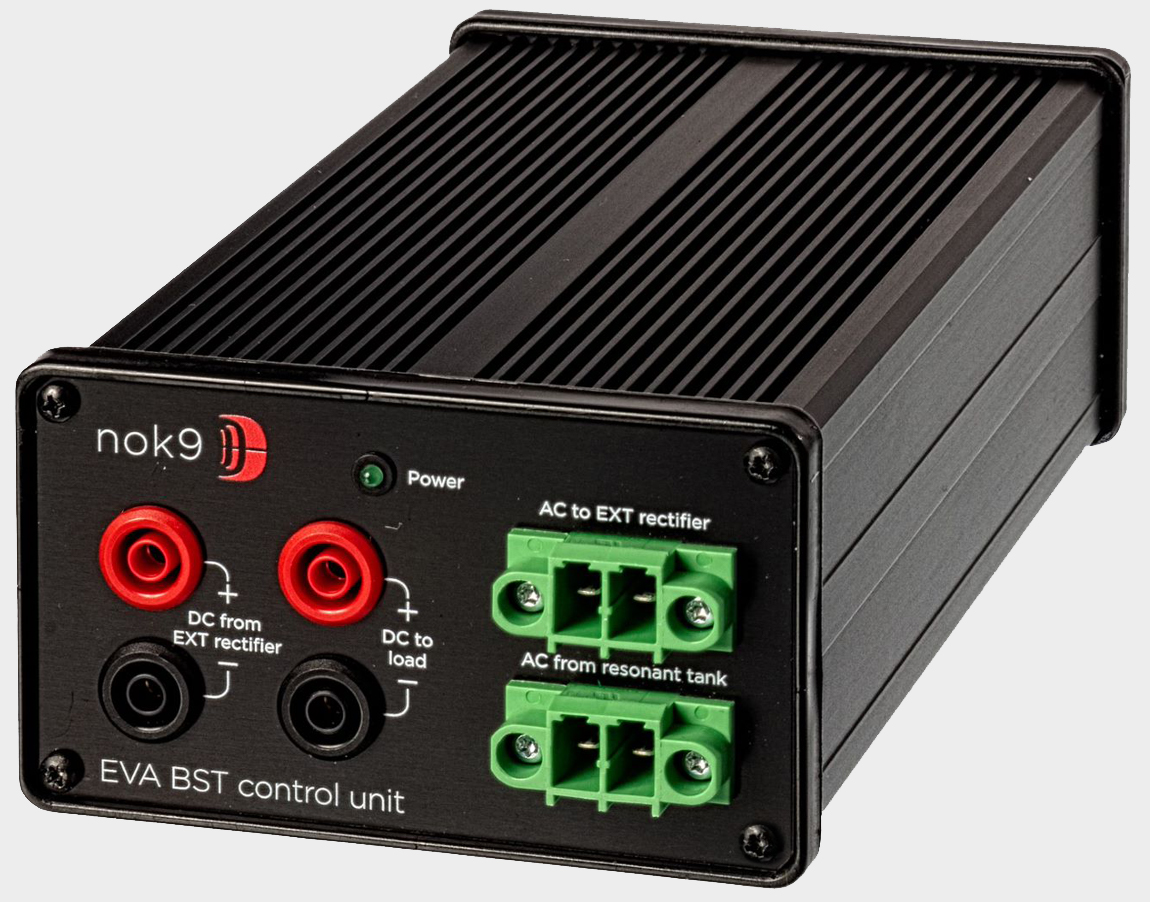

EVA I BST Control Unit

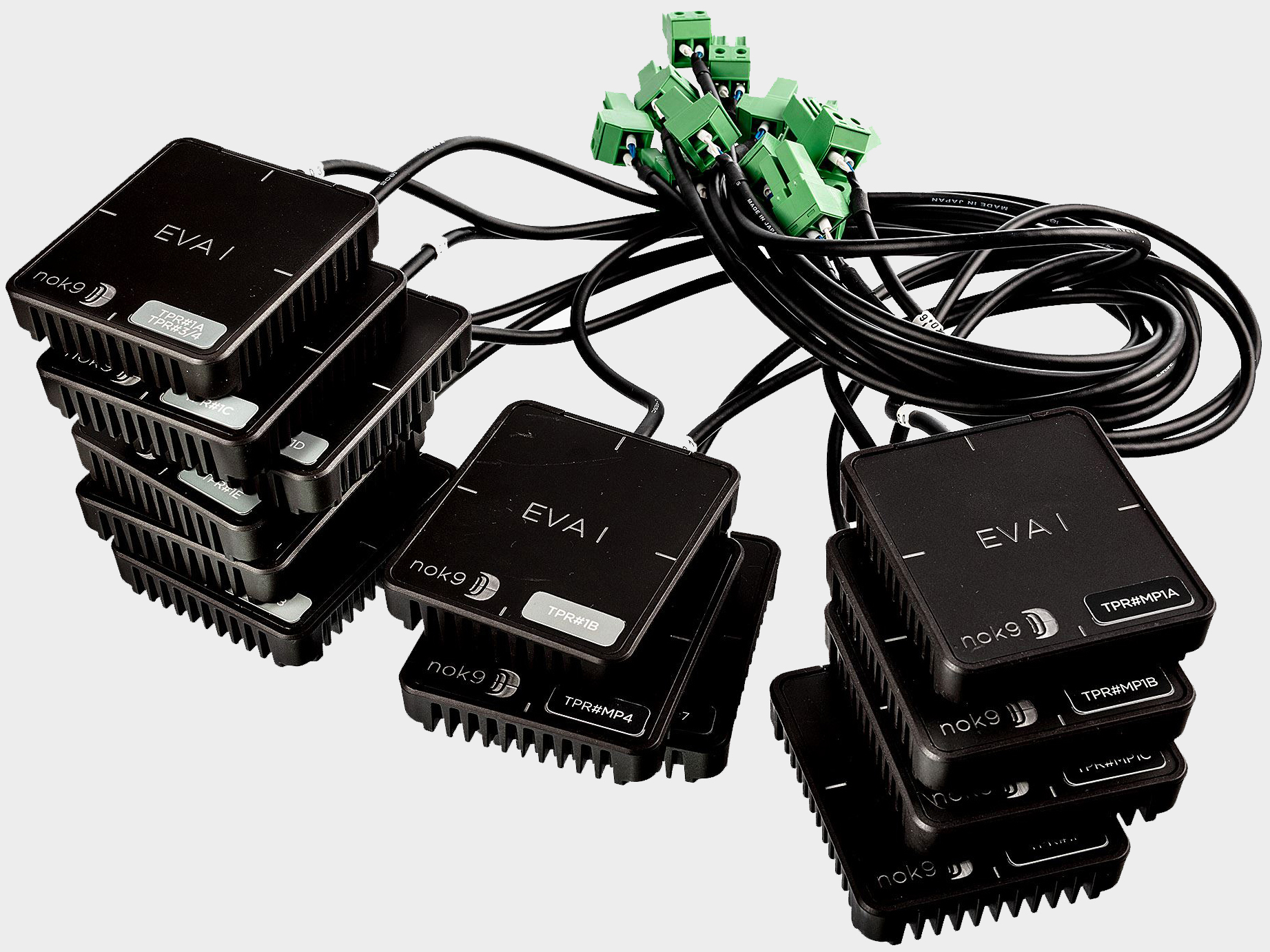

EVA I TPRs

EVA I TPR

The power transfer coil and the component that is coupled with the device under test (DUT), e.g. the transmitter. Through the EVA I TPR the electromagnetic signal is converted to electrical signals. A variety of TPRs are available, matching all reference designs defined in the Qi specification. The standard connectors also allow for proprietary coils to be connected directly to the EVA I BST unit.

ADD TO CART

SELECT DATASHEET

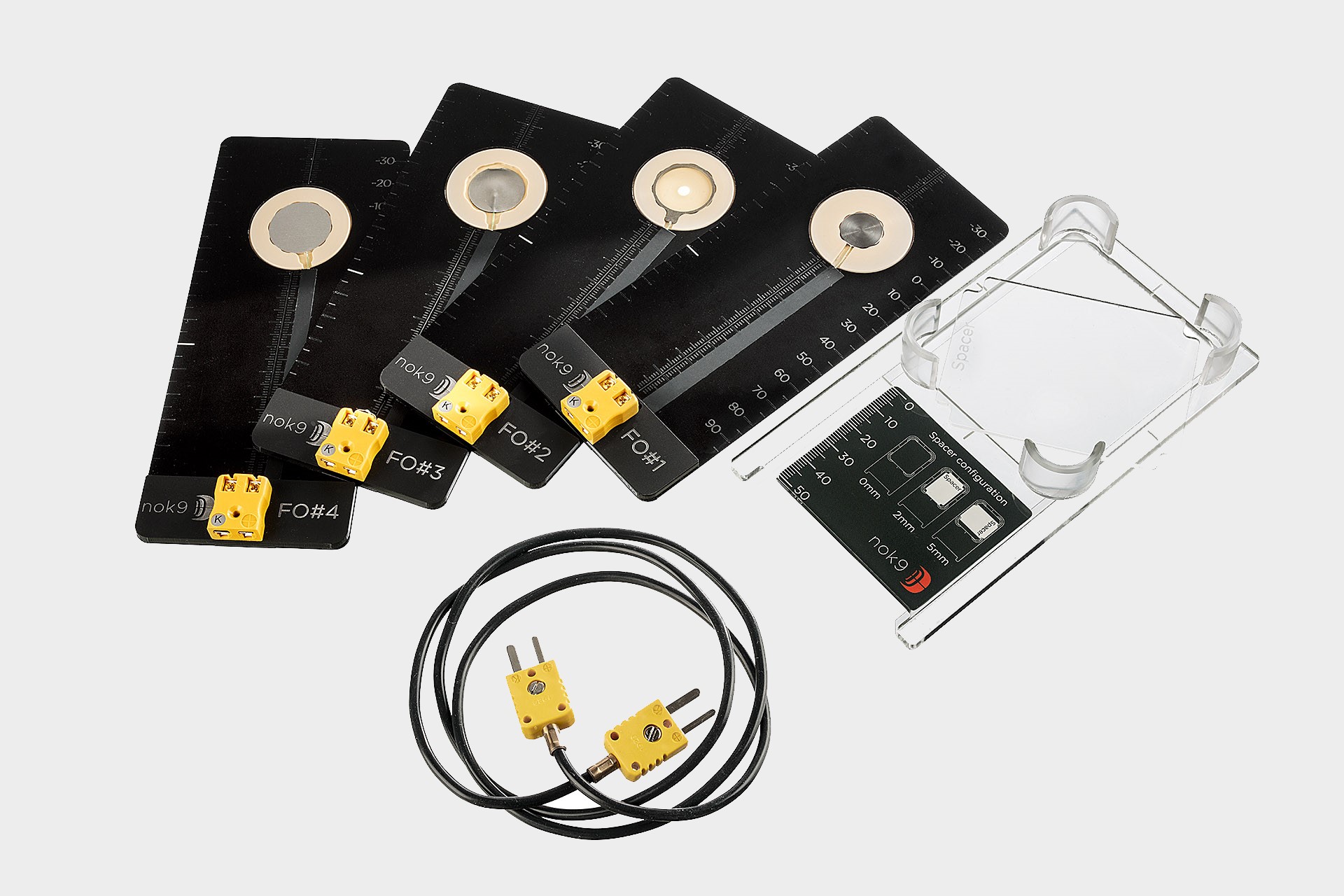

FOREIGN OBJECTS

Consists of 4 reference objects (as defined in Qi specification), positioning frame, spacer and thermo couple cables. Used together with EVA I BST and EVA TPR for measurements related to foreign object detection.

ADD TO CART

SELECT DATASHEET

EVA I Foreign Objects

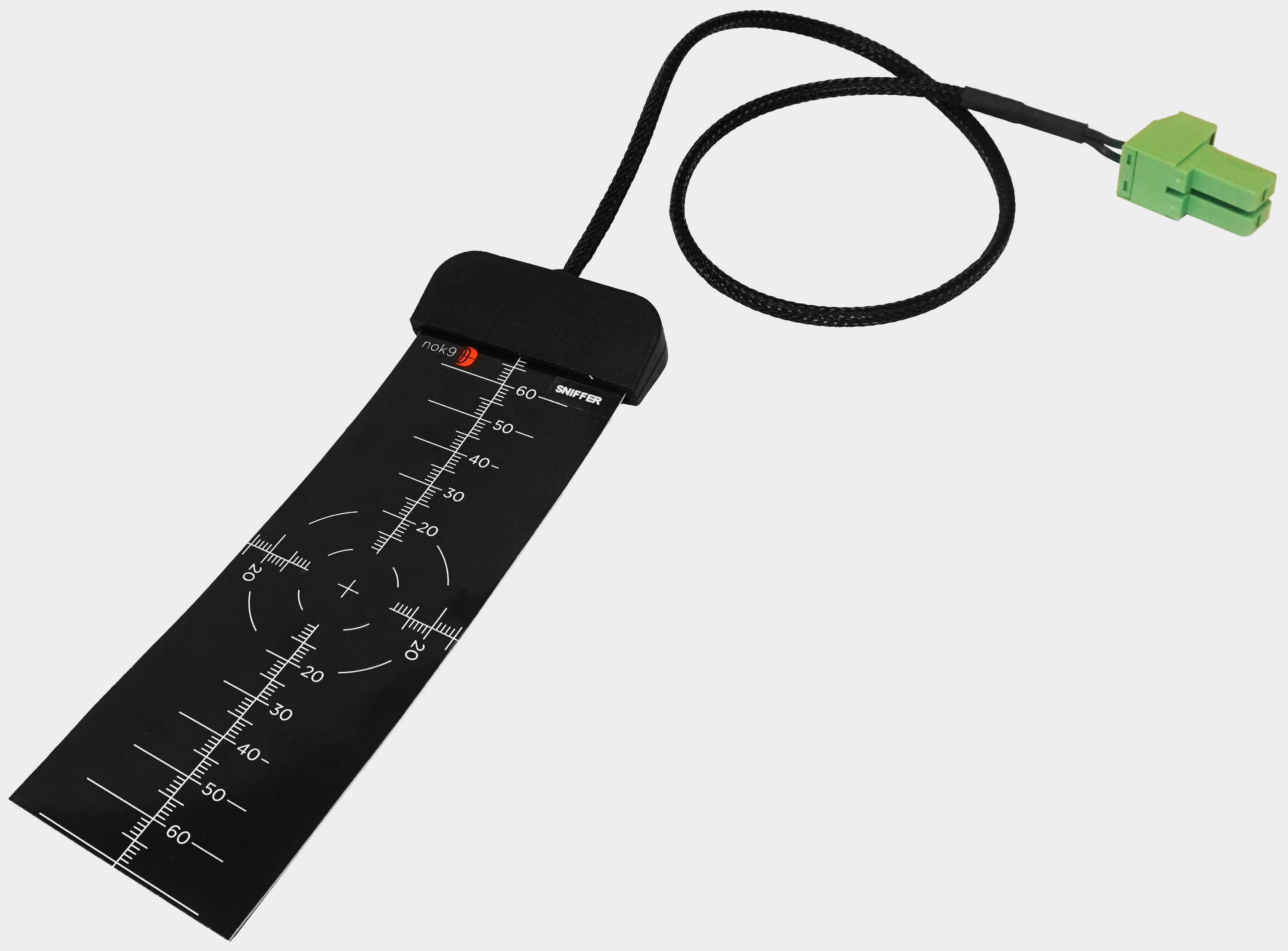

EVA I Sniffer

SNIFFER

Thin magnetic antenna connected to the EVA I BST and placed between a PTx and PRx to capture the communication in each phase of the Qi specification.

ADD TO CART

SELECT DATASHEET

SOFTWARE

_________________

The state of the art Graphical User Inteface is similar to other nok9 CATS tools (reference test equipment of WPC). Operating and real time measurements are presented to the user both in numerical values and graphical status bars, while the packet log displays communication as sent and intepreted by the tool. Utalizing graphical icons and visual indicators, the GUI provides real-time control over the systems operating parameters, allowing the user to interact with any electronic parameter and setting.

The GUI allows for full control of the tool, acting as a PRx (Qi receiver), while providing the user with live presentation of direct readouts of both communication log and key parameter measurement values.

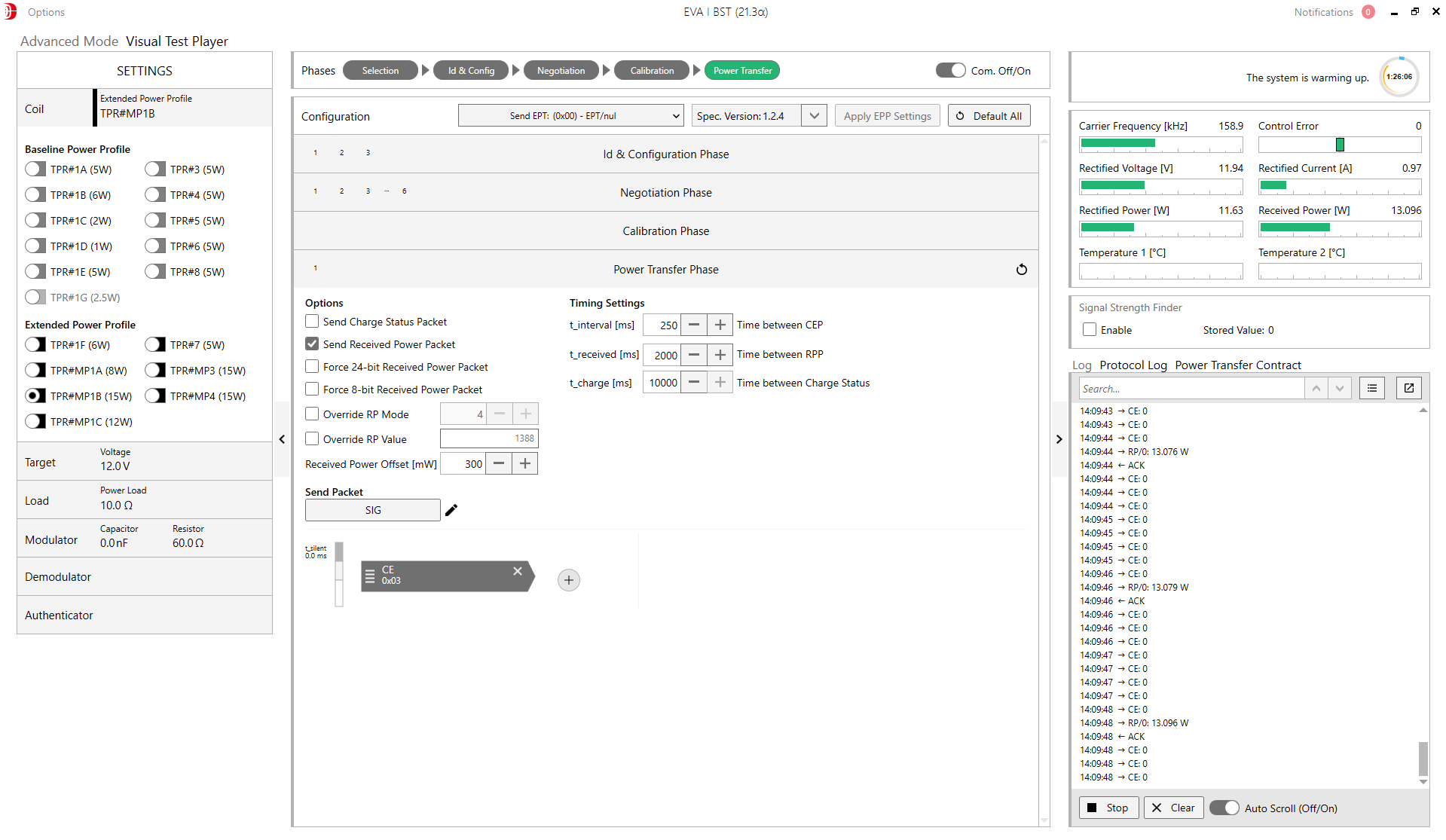

EVA I BST GUI

EVA I BST GUI

Qi Software Upgrade License

Yearly license subscription that enables support for latest WPC Qi specification, as released for EVA I BST. Provides immediate access to any new SW versions released for nok9 EVA I BST, related to current WPC specification versions. Upon release of new SW all new features related to the latest Qi version will be enabled in the GUI.

Subject to separate license agreement.

ADD TO CART

SELECT DATASHEET

EVA I BST GUI

1.3 UPGRADE

SW upgrade enables measurements and operation according to the WPC Qi v1.3 specification.

CONTACT US

SELECT DATASHEET

EVA I BST GUI
EVA I BST GUI

SAMSUNG FAST CHARGE

Includes TPR (TPR#PP1A) and SW that enables measurement according to the official proprietary protocol of Samsung Fast Charge.

CONTACT US

SELECT DATASHEET

VISUAL TEST PLAYER

SW upgrade that enables execution of any pre-programmed test cases as created and imported from CATS II BST.

CONTACT US

SELECT DATASHEET

EVA I BST GUI
EVA I BST GUI

API

SW upgrade that enables control of the EVA I BST Control Unit from remote host, over TCP IP, to initiate commands and retrieve data.

ADD TO CART

SELECT DATASHEET

KEY PARAMETER LOG

SW upgrade that enables graphical presentation and export of test results of all key parameters available in EVA I BST GUI (Rectified Voltage, Rectified Current, Operating Frequency, Control Error, Temperature etc.).

ADD TO CART

SELECT DATASHEET

EVA I BST GUI
EVA I BST GUI

MODIFY PACKET CONTENT

SW upgrade that enables modification, at a bit-level, for any available settings and configuration for each packet enabled in GUI.

CONTACT US

SELECT DATASHEET

ADD CUSTOM PACKET

SW upgrade that extends the packet list available in GUI to include any proprietary packet listed in the WPC Qi Specification.

CONTACT US

SELECT DATASHEET

EVA I BST GUI
EVA I BST GUI

SAVE/LOAD CONFIGURATION

SW upgrade that enables to save and load any combination of configurations that are currently applied in the GUI.

ADD TO CART

SELECT DATASHEET

OSCILLOSCOPE

SW upgrade that provides an internal oscilloscope, accessible in the GUI. The Oscilloscope includes all key parameters as available in the GUI with the addition of demodulation signals for protocol analysis.

ADD TO CART

SELECT DATASHEET

EVA I BST GUI
EVA I BST GUI

TEMPERATURE MEASUREMENTS

SW upgrade that enables for integrated temperature measurements and connection with any nok9 EVA FO or customer provided equivalent.

CONTACT US

SELECT DATASHEET

CUSTOM TPR SETTINGS

SW upgrade that enables the user to define the default configuration settings for any connected TPR.

ADD TO CART

SELECT DATASHEET

EVA I BST GUI

TECHNICAL SPECIFICATION

_______________________

EVA I BST CONTROL UNIT

Operating limits:

  • VDC < 48 V
  • IDC < 3 A
  • 10 kHz < f < 250 kHz
  • PDC < 144

Dimensions:

  • Width 110 mm
  • Height 64 mm
  • Length 175 mm

UI

  • 3 status LEDs
  • Switch for power on/off

Protection against:

  • Overvoltage on DC output
  • Overcurrent on DC output

I/O:

  • AC output to EVA I TPR: 2-pin terminalblock
  • DC input (internal power supply): DC-jack

Power supply:

  • 12 V DC input

EVA I TPR

P (typical): 5.6 W
Coil diameter: 32 mm
Coil inductance: 24 +/- 1 nH
fs: 95 +/- 5 kHz

Product dimensions:

  • Width 62 mm
  • Length 82 mm
  • Thickness 15 mm

I/O

  • AC input from EVA I BST: 2-pin terminal

WANT TO KNOW MORE?

EVA I MDT

EVA I MDT (Mobile Device Tester) is an evaluation platform for WPT transmitters (PRx) development, designed to support the WPC Qi standard.

The EVA I MDT converts DC input to AC input for any connected transmitter coil. Values are measured and presented in the GUI, through the USB connection to any external laptop. Operating parameters set in the GUI are interpreted by the EVA I MDT unit and passed on through the EVA I TPT.

_______________________
EVA I MDT

HARDWARE

_______________________

The EVA I MDT is a portable and modular platform that can be expanded with both HW and SW upgrades, purchased separately. The Starter Kit consists of a Control Unit and one TPP (Test Power Transmitter), which serve as the PTx coil on which to place the PTx Device Under Test (DUT). Additional upgrades of HW include various TPTs.

CONTROL UNIT

The power transfer coil and the component that is coupled with the device under test (DUT), e.g. the receiver. Through the EVA I TPT the electrical signal is converted to electromagnetic signals. Two TPTs are available, matching the reference designs defined in the Qi specification. The standard connectors also allow for proprietary coils to be connected directly to the EVA I MDT unit.

ADD TO CART

SELECT DATASHEET

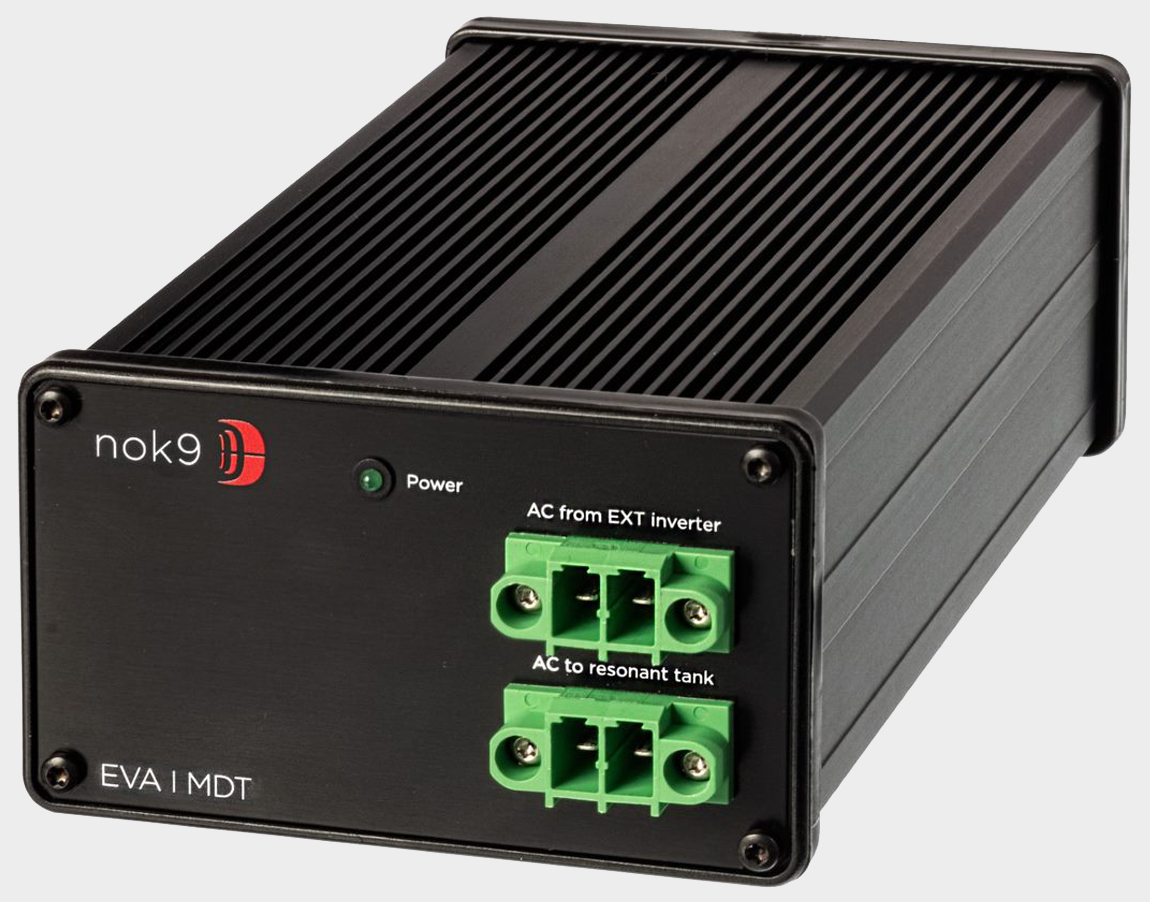

EVA I MDT Control Unit

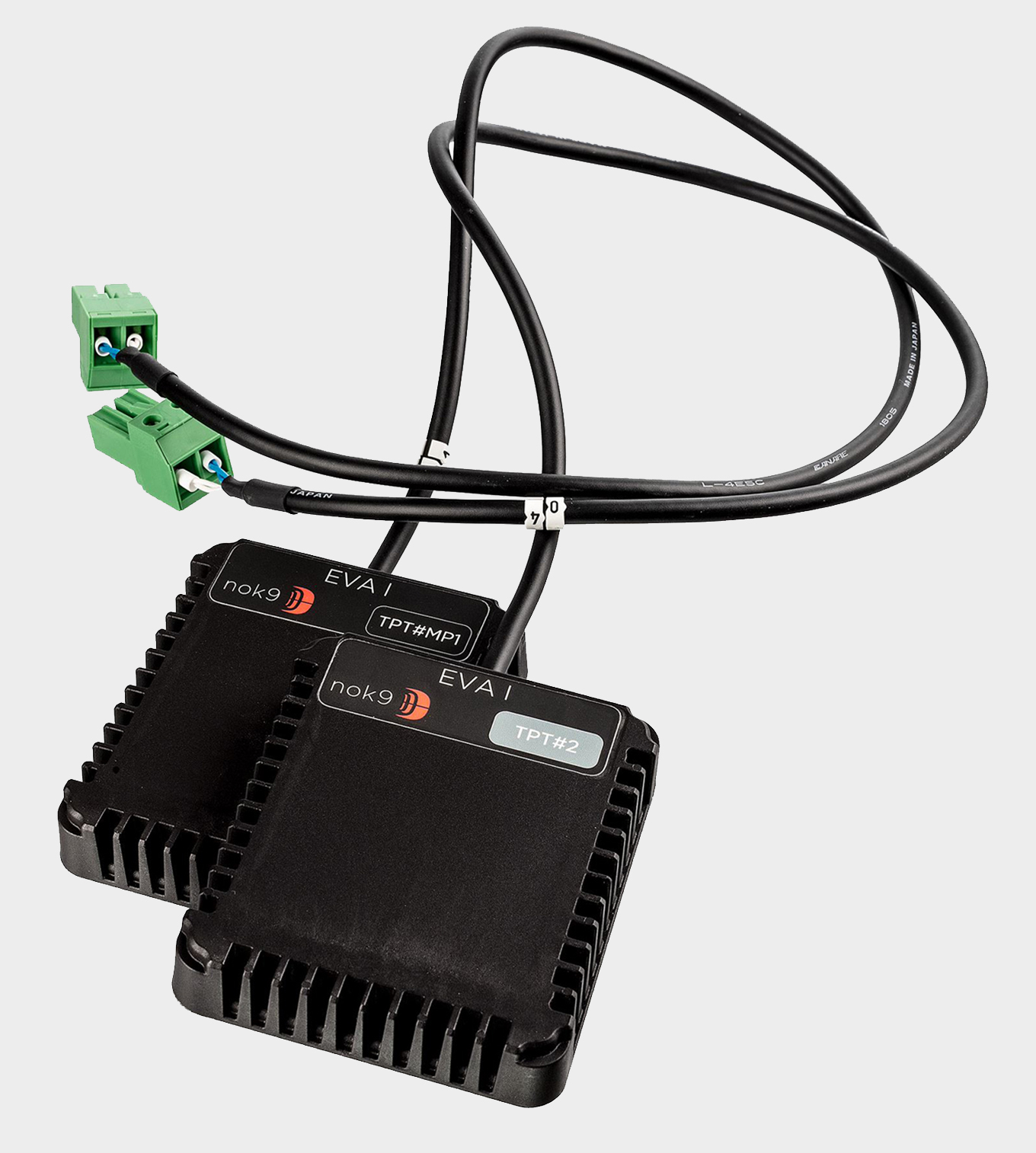

EVA I TPTs

EVA I TPT

The EVA I TPT includes a power transfer coil and is the component that is coupled with the device under test (DUT), e.g. the receiver. Through the EVA I TPT the electric signal is converted to electromagnetic signals. The standard connectors also allow for proprietary coils to be connected directly to the EVA I MDT unit.

ADD TO CART

SELECT DATASHEET

SOFTWARE

_______________________

The state of the art Graphical User Inteface is similar to other nok9 CATS tools (reference test equipment of WPC). Operating and real time measurements are presented to the user both in numerical values and graphical status bars, while the packet log displays communication as sent and intepreted by the tool. Utalizing graphical icons and visual indicators, the GUI provides real-time control over the systems operating parameters, allowing the user to interact with any electronic parameter and setting.

The GUI allows for full control of the tool, acting as a PTx (Qi transmitter), while providing the user with live presentation of direct readouts of both communication log and key parameter measurement values.

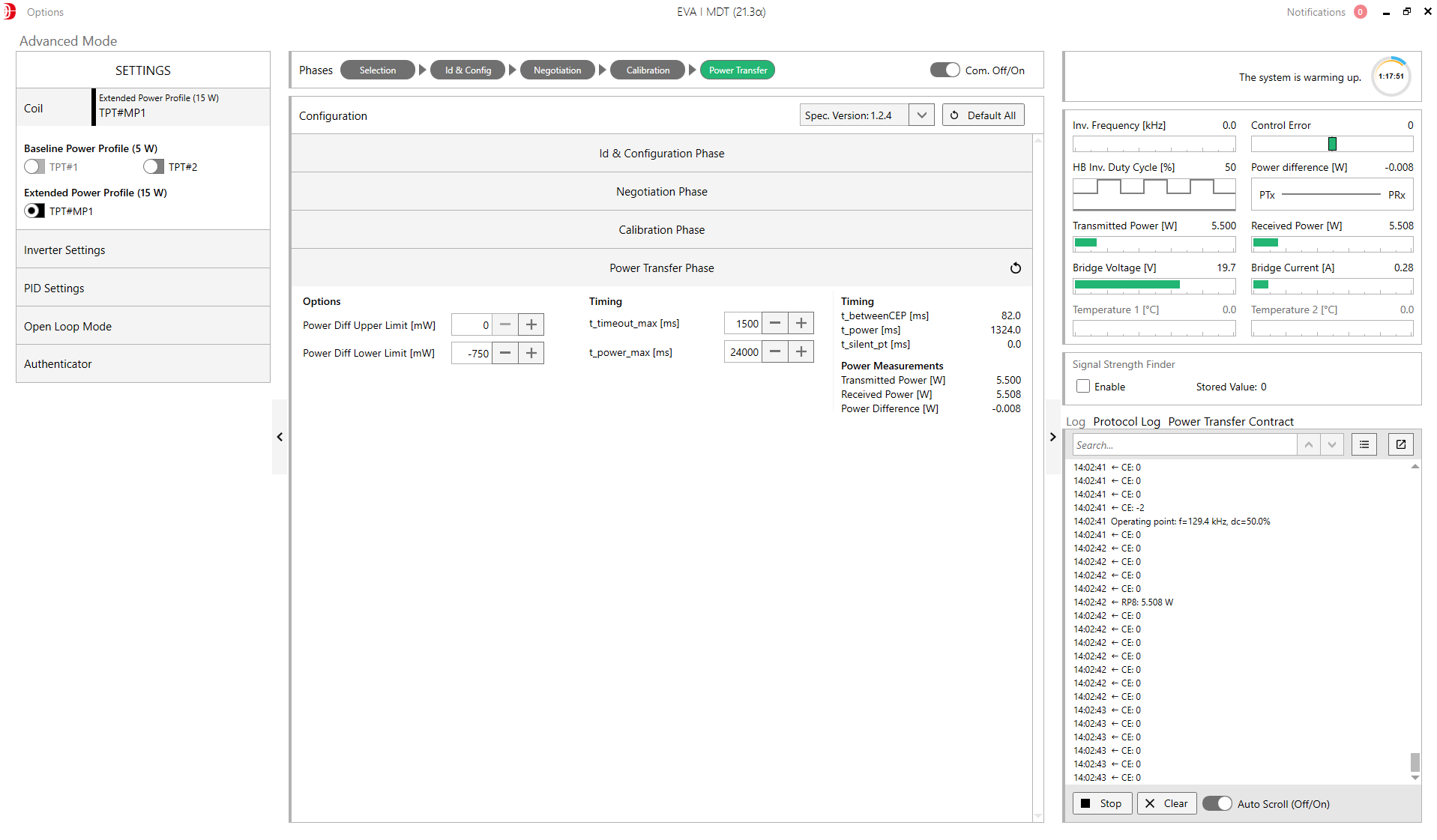

EVA I MDT GUI

EVA I MDT GUI

Qi Software Upgrade License

Yearly license subscription that enables support for latest WPC Qi specification, immediately as released for EVA I MDT. Provides immediate access to any new SW versions released for nok9 EVA I MDT, related to current WPC specification versions. Upon release of new SW all new features related to the latest Qi version will be enabled in the GUI.

Subject to separate license agreement.

ADD TO CART

SELECT DATASHEET

EVA I Sniffer
EVA I Sniffer

1.3 UPGRADE

SW upgrade enables measurements and operation according to the WPC Qi v1.3 specification.

CONTACT US

SELECT DATASHEET

VISUAL TEST PLAYER

SW upgrade that enables execution of any pre-programmed test cases as created and imported from CATS II MDT.

CONTACT US

SELECT DATASHEET

EVA I Sniffer
EVA I Sniffer

API

SW upgrade that enables control of the EVA I MDT Control Unit from remote host, over TCP IP, to initiate commands and retrieve data.

ADD TO CART

SELECT DATASHEET

KEY PARAMETER LOG

SW upgrade that enables graphical presentation and export of test results of all key parameters available in EVA I MDT GUI (Rectified Voltage, Rectified Current, Operating Frequency, Control Error, Temperature etc.).

ADD TO CART

SELECT DATASHEET

EVA I Sniffer
EVA I Sniffer

MODIFY PACKET CONTENT

SW upgrade that enables modification, at a bit-level, for any available settings and configuration for each packet enabled in GUI.

CONTACT US

SELECT DATASHEET

SAVE/LOAD CONFIGURATION

SW upgrade that enables to save and load any combination of configurations that are currently applied in the GUI.

ADD TO CART

SELECT DATASHEET

EVA I Sniffer
EVA I Sniffer

OSCILLOSCOPE

SW upgrade that provides an internal oscilloscope, accessible in the GUI. The Oscilloscope includes all key parameters as available in the GUI with the addition of demodulation signals for protocol analysis.

ADD TO CART

SELECT DATASHEET

TEMPERATURE MEASUREMENTS

SW upgrade that enables for integrated temperature measurements and connection with any nok9 EVA FO or customer provided equivalent.

CONTACT US

SELECT DATASHEET

EVA I Sniffer
EVA I Sniffer

CUSTOM TPT SETTINGS

SW upgrade that enables the user to define the default configuration settings for any connected TPT.

ADD TO CART

SELECT DATASHEET

TECHNICAL SPECIFICATIONS

_______________________

EVA I MDT CONTROL UNIT

Operating limits:

  • VDC < 48 V
  • IDC < 3 A
  • 10 kHz < f < 250 kHz
  • PDC < 144

Dimensions:

  • Width 110 mm
  • Height 64 mm
  • Length 175 mm

UI

  • 3 status LEDs
  • Switch for power on/off

Protection against:

  • Overvoltage on DC output
  • Overcurrent on DC output

I/O:

  • AC output to EVA I TPT: 2-pin terminalblock
  • DC input (internal power supply): DC-jack

Power supply:

  • 12 V DC input

EVA I TPT

P (typical): 5.6 W
Coil diameter: 32 mm
Coil inductance: 24 +/- 1 nH
fs: 95 +/- 5 kHz

Product dimensions:

  • Width 62 mm
  • Length 82 mm
  • Thickness 15 mm

I/O

  • AC input from EVA I MDT: 2-pin terminal
