EVA III
Wireless power evaluation tools for the kitchen
Developed by nok9, sole provider of compliance and reference tools for QI (BPP & EPP)
___________
Focused on performance testing of wireless power designs for kitchen appliances
___________
Easy to use, with two separate modules for transmitter and receiver emulation
___________
Designed to test the full specification of the Cordless Kitchen developed by the WPC
___________
Cost-effective system for wireless power product design and interoperability testing
MEET THE EVA III

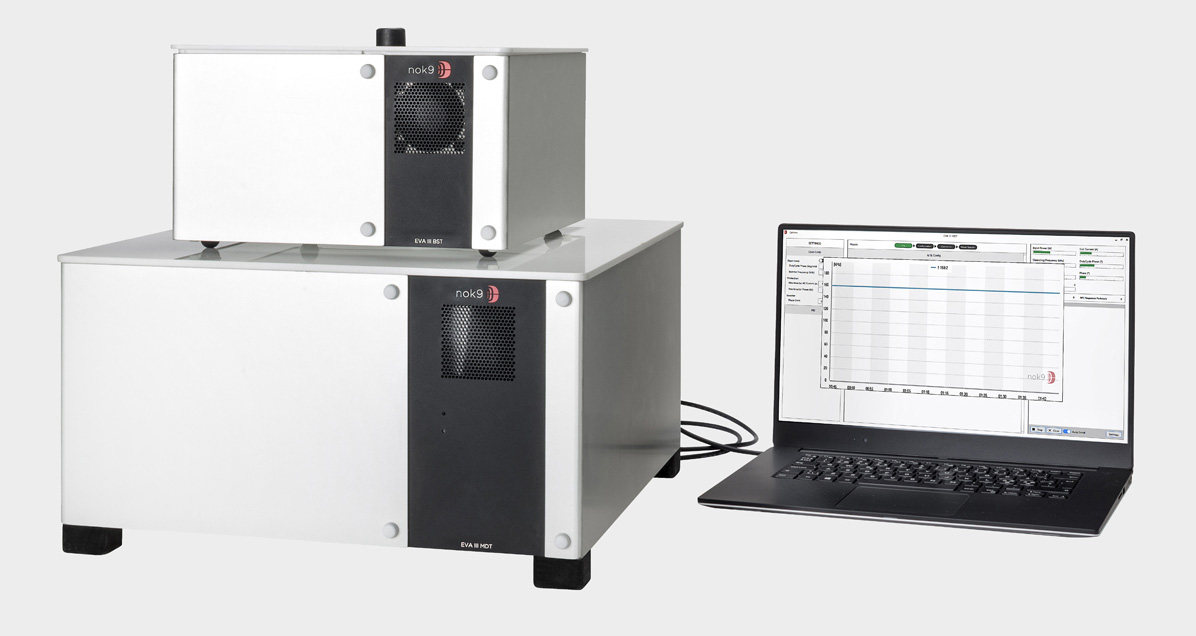

EVA III is the first comprehensive set of evaluation and compliance tools designed for performance testing and evaluation of wireless power devices within the emerging Cordless Kitchen specification from the Wireless Power Consortium (WPC).The EVA III system includes two primary units: the Base Station Tester (BST), with separate load boxes to test a transmitter, and the Mobile Device Tester (MDT) to test a receiver. In addition to this core configuration, the system connects to a host computer via a USB connection, and it features a dynamic user interface that provides adjustable settings and parameters to fit individual product development and evaluation needs.
EVA III MDT & EVA III BST
BST
_______________________
- Used to emulate an appliance designed for Cordless Kitchen specification created and managed by the WPC
- Targeted at manufacturers of kitchen countertops, stoves, the device that generates the electromagnetic field
MDT
_______________________
- Used to emulate a kitchen countertop designed for the Cordless Kitchen specification created and managed by the WPC
- Targeted at manufacturers of kitchen tools such as blenders, coffee makers and similar appliances - the devices that harvests the electromagnetic field
SYSTEM OVERVIEWS
EVA III BST
______________________________________________________________________________________
EVA III MDT
TECHNICAL SPECIFICATIONS
_______________________
EVA III MDT
For countertop manufacturers
Supports all three power classes and sizes
Compatibility with universal mains (90-260VAC, 50-60Hz)
State of the art measurement of:
- Voltage
- Power
- Temperature
- Efficiency
- Current
- Phase
Provides analysis of the load dumps/steps
Fully customizable PID-based regulation method (frequency and/or phase)
Communication
- Fully equipped out of band communication link
- Fully customizable packet content/sequence/baud rate
- According to the WPC Cordless Kitchen spec
- 13.56MHz out of band communication channel
- NFC compatibility
User Interface
- Adjustable settings and parameters to fit individual product development and evaluation needs
Safe Measurement tool for mains operated equipment
- Internal Scope (Internal measurement circuits that isolate high voltage signals from the operator)
- Over voltage/over current protector
- Emergency Stop
Lightweight portable system
Frequency ranges
- Series Resonance at 33KHz (Tuneable through GUI)
Foreign object detection (FOD)
Provides common failure scenarios for RX to handle gracefully
EVA III BST
For appliance manufacturers
Emulates different types of loads
- Heater - kettle/rice cooker (up to 2.4KW)
- Motors - blender/food processor
- Modular interface of load boxes allows for stacking/combining of loads
- Coil Box/RX Box supports all three power classes and sizes
- Compatibility with universal mains (90-260VAC, 50-60Hz)
Load Disconnection
- Advanced analysis of load transitions/load disconnect/load dumps/load steps
State of the art measurement of:
- Voltage
- Power
- Temperature
- Efficiency
- Current
Communication
- Fully equipped out of band communication link
- Fully customizable packet content/sequence/baud rate
- According to the WPC Cordless Kitchen spec
- 13.56MHz out of band communication channel
- NFC compatibility
User Interface
- Adjustable settings and parameters to fit individual product development and evaluation needs
Safe Measurement tool for mains operated equipment
- Internal Scope (Internal measurement circuits that isolate high voltage signals from the operator)
- Over voltage/over current protector
- Emergency Stop
Lightweight portable system
Frequency ranges
- Series Resonance at 33KHz (Tuneable through GUI)
